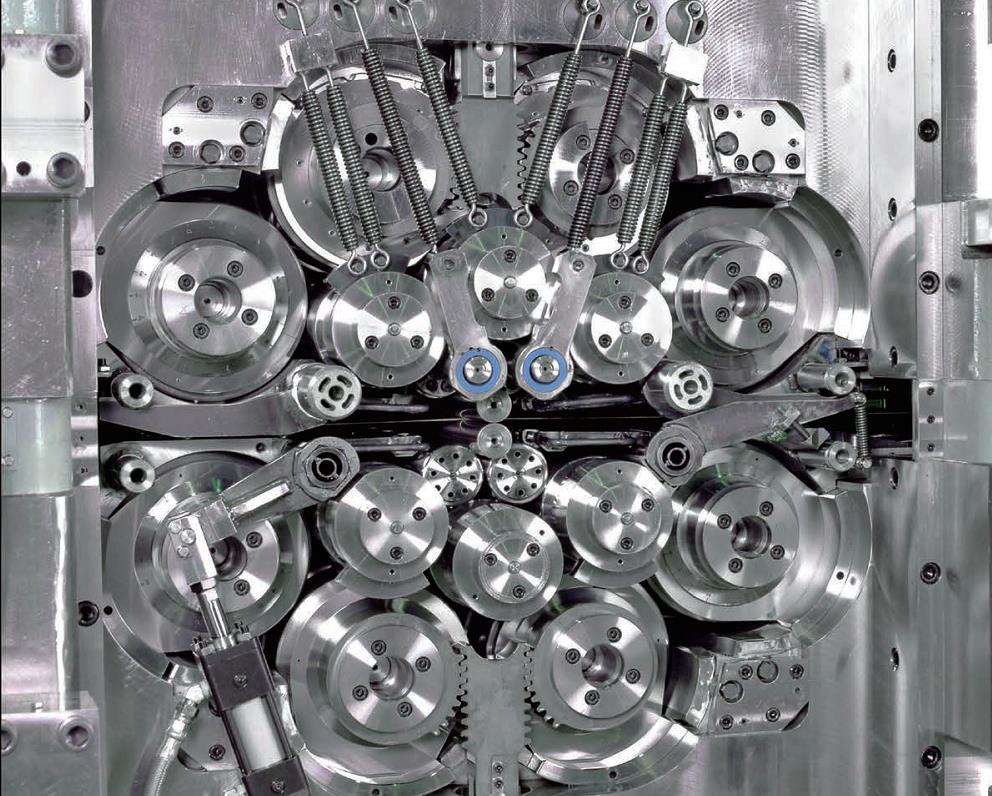

Sendzimir roll mill bearings - (Replace Koyo)
Senzimir bearings manufactured by FV have been exported to more than 20 countries in the world. Aluminum foil and copper foil finishing mills are most widely used in European and Chinese markets. Perfect replacement for Koyo and fag. To save manufacturing costs for users. Accuracy: Better than P4 (Each group)

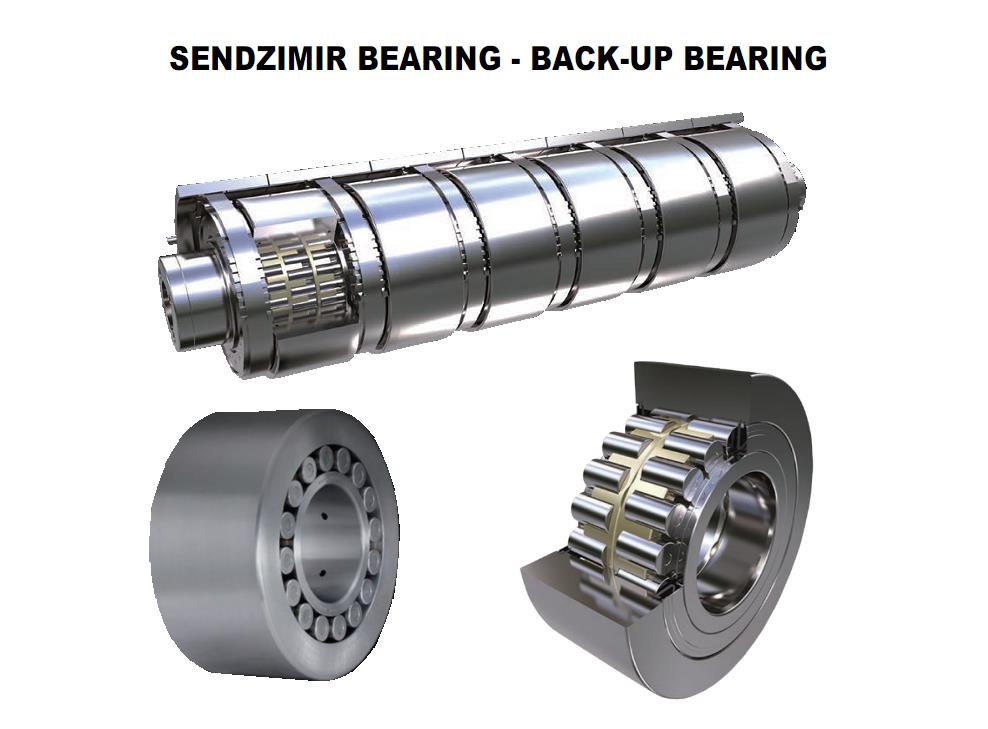

Backing Bearings for Multi-Roll Rolling Cluster Mills - (Replace Koyo) A list of available bearings can be found in the following dimensions table. For any dimensions which are not on the table, please consult FV.
 |  |
A list of available bearings can be found in the following dimensions table. For any dimensions which are not on the table, please consult FV.
| Bearing dimensions table | |||||||||

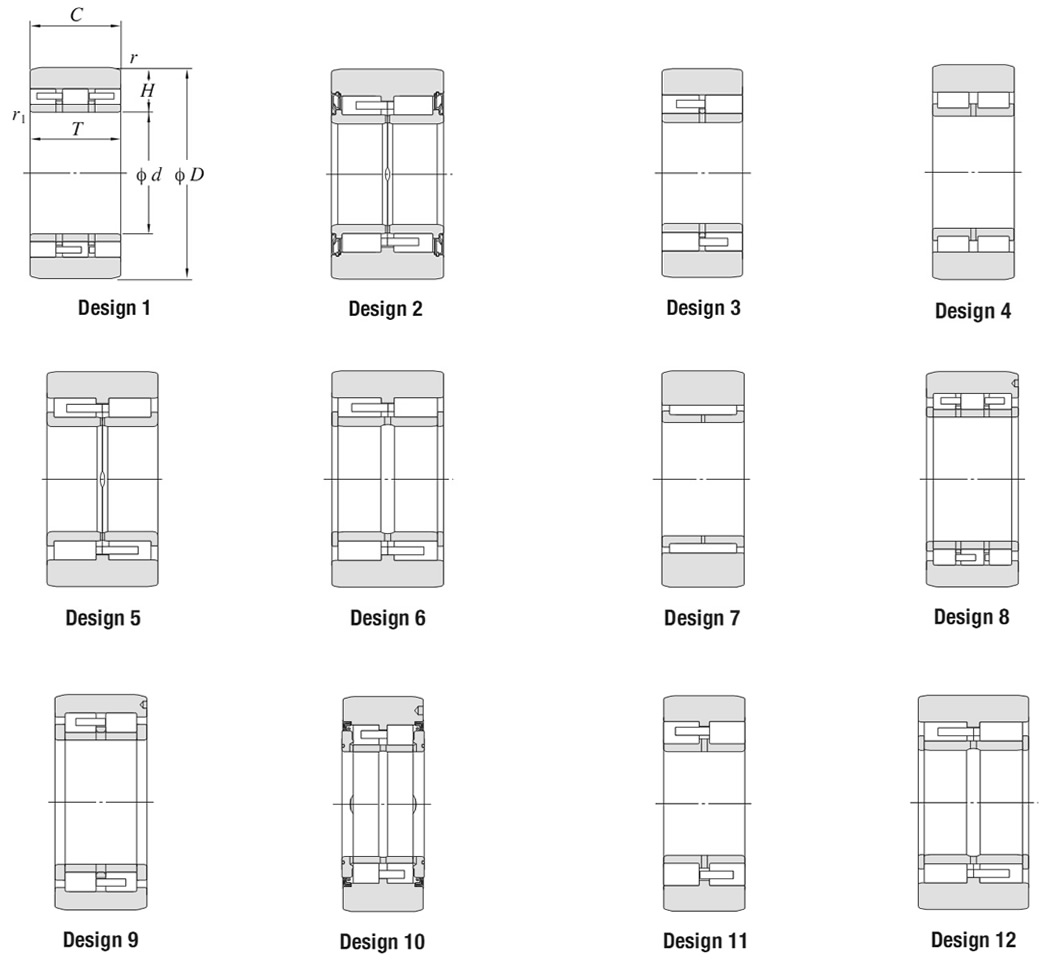

| Boundary dimensions (mm) | Bearing No. | Design | Bearing section height when manufactured | Mass | Amount of bearing required per mill | Applicable multi-roll mill type | |||
| d (Fw) | D | T | C | H (mm) | (kg) | 1) | |||
| 31.75 | 76.2 | 46.23 | 45.85 | 06DC0846A | 4 | 22.2 | 1.27 | 40 | ZR34 |
| 54.999 | 120 | 25.999 | 25.999 | 11N1226V | 7 | 32.4672 | 1.69 | 24,56 | ZR24 |
| 55 | 120 | 52.197 | 52 | 11DC1252 | 4 | 32.483 | 3.27 | 40 | ZR24 |
| 70 | 160 | 90 | 90 | 14DC1690LDS-1 | 5 | 44.977 | 10.1 | 40 | ZR33 |
| 70 | 160.07 | 90 | 90 | 14DC1690ADS | 1 | 45 | 10.5 | 32,48,72 | ZR33 |
| 90 | 190 | 100 | 100 | 18DC19100NDS | 5 | 49.98 | 14.7 | 48 | ZR25 |
| 100 | 225.021 | 80 | 80 | 20DC23080DS | 3 | 62.474 | 18.2 | 12（36） | ZR23 |
| 100 | 225.021 | 120 | 120 | 20DC23120MDS | 1 | 62.474 | 27.2 | 32 | ZR23 |
| 100 | 225 | 100 | 100 | 20DC23100NDS-1 | 5 | 62.48 | 21.7 | 40 | ZR23 |
| 99.995 | 225 | 120 | 120 | 20DC23120KDS-2 | 2 | 62.474 | 26 | 32,40,48 | ZR23 |
| 130 | 300 | 160 | 159.5 | 26DC30160DS | 1 | 84.9617 | 64.8 | 40,48 | ZR22 |
| 130 | 300 | 172.644 | 172.644 | 26DC30170MDS | 1 | 84.955 | 72.6 | 40,48 | ZR22 |
| 130 | 300 | 172.644 | 172.644 | 26DC30170KDS-3 | 2 | 84.955 | 70 | 40,48 | ZR22 |
| 180 | 406.42 | 171.04 | 171.04 | 36DC41171DS | 1 | 113.155 | 130 | 48,56 | ZR21 |
| 180 | 406.42 | 171.04 | 171.04 | 36DC41171ADS | 6 | 113.155 | 124 | 48,56 | ZR21 |
| 180 | 406.42 | 171.04 | 171.04 | 36DC41171KDS | 2 | 113.155 | 125 | 48 | ZR21 |
| 179.984 | 406.43 | 223.96 | 217 | 36DC41217DS+DP | 1 | 113.155 | 161 | 40,48 | ZR21 |
| 179.984 | 406.43 | 224.25 | 220 | 36DC41224KDS | 2 | 113.181 | 160 | 32,48 | ZR21 |
| 180 | 406.42 | 224.25 | 224 | 36DC41224QDS | 5 | 113.155 | 162 | 40,48 | ZR21 |
| Cylindrical roller bearings for work roll thrust | |||||||||
| 50 | 110 | 44.4 | 44.4 | 10NUP1144 | – | – | 2.33 | – | ZR22,ZR21 |
| 50 | 125 | 48 | 46 | 10NUP1346/48 | – | – | 3.39 | – | ZR21 |
| 50 | 125 | 52 | 52 | 10NUP1352 | – | – | 3.8 | – | ZR21 |
| Boundary dimensions (mm) | Bearing No. | Design | Bearing section height when manufactured (mm) | Mass | Amount of bearing required per mill | Applicable multi-roll mill type | |||
| d (Fw) | D | T | C | H | (kg) | ||||
| 50 | 120 | 80 | 80 | 10DC1280DS | 9 | 34.976 | 5.15 | 32 | 12-Hi |
| 50 | 120 | 85 | 85 | 10DC1285DS | 9 | 34.984 | 5.4 | 32 | |
| 60 | 160 | 95 | 95 | 12DC1695DS | 9 | 46.484 | 11.5 | 20（32） | |
| 65 | 170 | 100 | 100 | 13DC17100DS | 9 | 52.48 | 13.5 | 10（34） | |
| 90 | 230 | 100 | 100 | 18DC23100DS | 9 | 69.98 | 24.2 | 24（34） | |
| 100 | 260 | 95 | 95 | 20DC2695DS | 9 | 79.97 | 30.2 | 32 | |
| 100 | 260 | 105 | 105 | 20DC26105DS | 9 | 79.97 | 33.5 | 32 | |
| 90 | 260 | 125 | 125 | 18DC26125DS | 9 | 84.97 | 41.3 | 34 | |
| 100 | 260 | 130 | 130 | 20DC26130DS | 9 | 79.97 | 41.5 | 32 | |
| 110 | 280 | 165 | 165 | 22DC28165DS | 8 | 84.965 | 60.2 | 10（34） | |
| 120 | 280 | 165 | 165 | 24DC28165DS | 9 | 79.965 | 57.7 | 14（38） | |
| 120 | 350 | 165 | 165 | 24DC35165ADS | 12 | 114.965 | 98.3 | 24（34） | |
| 130 | 350 | 175 | 175 | 26DC35175DS | 12 | 109.965 | 101 | 24（38） | |
| 62 | 155 | 90 | 90 | 12DC1690DS | 9 | 46.484 | 9.97 | 8（44） | 20-Hi |
| 62 | 155 | 110 | 110 | 12DC16110DS | 8 | 46.484 | 12.2 | 36（44） | |
| 90 | 220 | 95 | 95 | 18DC2295DS | 9 | 64.982 | 20.9 | 40 | |
| 90 | 220 | 130 | 130 | 18DC22130ADS | 8 | 64.982 | 28.7 | 32 40 | |
| 115 | 260 | 140 | 140 | 23DC26140DS | 8 | 72.47 | 41.9 | 40 | |
| 65 | 165 | 70 | 70 | 13DC1770DS | 11 | 49.982 | 8.83 | 40 | |
| 90 | 220 | 94 | 94 | 18DC2294DS | 11 | 64.976 | 21.2 | 40 | |
| 90 | 220 | 96 | 94 | 18DC2294/96DS | 10 | 65 | 21 | 64 | |
| 130 | 300.02 | 130 | 129 | 26DC30130DS | 9 | 85.01 | 52.2 | 56 | |
| 130 | 300.02 | 130 | 129 | 26DC30130BDS | 10 | 85.01 | 51.8 | – | |
| 130 | 300.02 | 132 | 129 | 26DC30132ADS | 9 | 85.01 | 53.8 | 72 | |
| Note 1) The numbers in parentheses, show necessary bearing quantities per mill. Differences in numbers in parentheses mean it is necessary to use other bearings as well. | |||||||||
|
