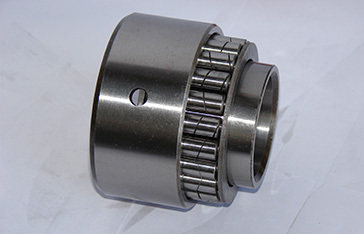

Spring bush bearings, spring roller bearings, Spring bush bearings is its other name. Its accuracy is not high, but its diameter can be changed and can withstand high temperature. One example is the steel industry with different applications, support and guide rollers in continuous casting, roller table rollers in furnaces or in finishing equipment. Size range: 30 - 280 mm Large amount of stock!
Spring bush bearings, spring roller bearings, Spring bush bearings
These special rolling bearing designs build the brand essence of German "eich". Initially, some of these bearing types had been used in various mining applications. An example is the yoke type roller "Alaf", a type of wheel bearing for transport containers for discharging coal. The good experience in mining applications provided important insights into the performance
of these bearing also for other applications. One example is the steel industry with different applications,
roller table rollers in rolling mills, support and guide rollers in continuous casting, roller table rollers in
furnaces or in finishing equipment.

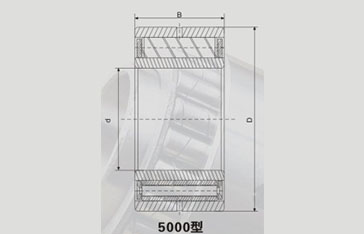

Bearing No. | Dimensions(mm) | Load ratings(KN) | Oil Holes | Mass (Kg) | |||
d | D | B | Diameter | Pcs | |||
5206 | 30 | 62 | 28 | 8 | 6 | 2 | 0.43 |
5207 | 35 | 72 | 30 | 10 | 6 | 2 | 0.62 |
5208 | 40 | 80 | 35 | 12 | 6 | 2 | 0.94 |
5209 | 45 | 85 | 40 | 16 | 8 | 2 | 1.09 |
5210 | 50 | 90 | 44 | 20 | 8 | 2 | 1.3 |
5211 | 55 | 100 | 46 | 23 | 8 | 2 | 1.6 |
5212 | 60 | 110 | 49 | 27 | 8 | 2 | 2.13 |
5213 | 65 | 120 | 52 | 30 | 8 | 2 | 2.75 |
5214 | 70 | 125 | 60 | 38 | 10 | 2 | 3.35 |
5215 | 75 | 130 | 67 | 40 | 10 | 2 | 3.86 |
5216 | 80 | 140 | 67 | 50 | 10 | 2 | 4.5 |
5217 | 85 | 150 | 70 | 56 | 10 | 2 | 5.48 |
5218 | 90 | 160 | 70 | 58 | 10 | 2 | 6.5 |
5219 | 95 | 170 | 76 | 68 | 10 | 2 | 8.08 |
5220 | 100 | 180 | 82 | 75 | 10 | 2 | 9.39 |
5222 | 110 | 200 | 89 | 92 | 14 | 2 | 12.9 |
5224 | 120 | 215 | 98 | 105 | 14 | 2 | 16.6 |
5226 | 130 | 230 | 108 | 120 | 14 | 2 | 19.94 |
5228 | 140 | 250 | 120 | 135 | 14 | 2 | 26.9 |
5230 | 150 | 270 | 120 | 140 | 16 | 2 | 30.4 |
5232 | 160 | 290 | 124 | 150 | 16 | 2 | 37.3 |
5234 | 170 | 310 | 137 | 170 | 18 | 2 | 47.36 |
5236 | 180 | 320 | 149 | 180 | 18 | 2 | 53.68 |
5240 | 200 | 360 | 175 | 240 | 18 | 2 | 75 |
5307 | 35 | 80 | 35 | 12 | 6 | 2 | 0.84 |
5308 | 40 | 90 | 36 | 14 | 8 | 2 | 1.11 |
5309 | 45 | 100 | 39 | 18 | 8 | 2 | 1.48 |
5310 | 50 | 110 | 44 | 21 | 8 | 2 | 2.02 |
5311 | 55 | 120 | 49 | 26 | 8 | 2 | 2.98 |
5312 | 60 | 130 | 54 | 32 | 10 | 2 | 3.51 |
5313 | 65 | 140 | 59 | 41 | 10 | 2 | 4.25 |
5314 | 70 | 150 | 64 | 47 | 10 | 2 | 5.43 |
5315 | 75 | 160 | 68 | 54 | 10 | 2 | 6.7 |
5316 | 80 | 170 | 68 | 57 | 10 | 2 | 7.4 |
5317 | 85 | 180 | 73 | 66 | 10 | 2 | 9.23 |
5318 | 90 | 190 | 76 | 69 | 14 | 2 | 12.19 |
5319 | 95 | 200 | 78 | 70 | 14 | 2 | 12.15 |
5320 | 100 | 215 | 83 | 72 | 14 | 2 | 15.82 |
5322 | 110 | 240 | 95 | 75 | 14 | 2 | 21.39 |
5324 | 120 | 260 | 105 | 96 | 14 | 2 | 27.95 |
5826 | 130 | 230 | 110 | 120 | 14 | 2 | 20.8 |
5744 | 220 | 380 | 175 | 250 | 18 | 2 | 86.62 |
5756 | 280 | 420 | 127 | 160 | - | - | 62.7 |
