Work Roll Bearing Arrangement of a 7-Stand Finishing Section of a Hot Strip Mill
Aug 23, 2021
Steel mill plant : United, USA (Stand 1 to 6)
Davy Loewy, Great Britain (Stand 7)
Operator: Work Roll Bearing Arrangement of a 7-Stand Finishing Section of a Hot Strip Mill, Corus Strip Products IJmuiden, Netherlands
Roll bearing arrangement: The rolls are supported on both ends in sealed four-row tapered roller bearings F-802007-H122BH (563681A).
Operating data:
Roll body diameter 736 mm
Roll length 2 235 mm
Rolling speed (Stand 1…7) 3.5–20 m/s
Bearing arrangement of a work roll with sealed four-row tapered roller bearing
Four-row tapered roller bearing F-802007-H122BH
Bearing Dimensions:
Bore d: 482.6 mm
Outside diameter D: 615.95 mm
Width B: 330.2 mm

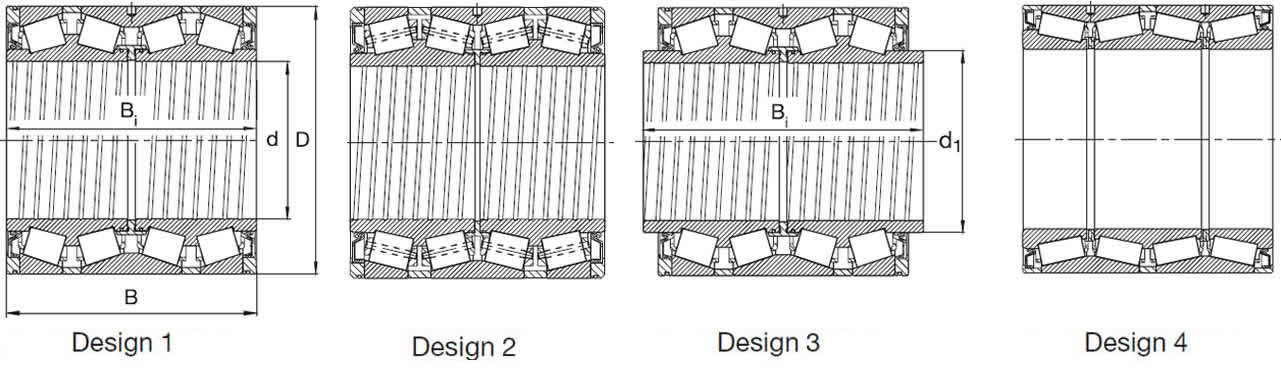

For more bearing models of four row tapered roller mill, please see the list below:
| FV BEARING CODE | d | D | B | Bi | Mass (Kg) | Replace FAG code, Roll neck bearings |
| S4T-F-573415 | 139.7 | 200.025 | 160.34 | 157.165 | 17 | Z-573415 Sealed type, Four row tapered roller bearings |
| S4T-F-802107 | 152.4 | 244.475 | 187.325 | 192.088 | 33 | Z-802107 Sealed type, Four row tapered roller bearings |
| S4T-F-577692 | 165.1 | 225.425 | 168.275 | 165.1 | 20 | Z-577692 Sealed type, Four row tapered roller bearings |
| S4T-F-802125 | 165.456 | 229.946 | 165.1 | 165.1 | 22.5 | Z-802125 Sealed type, Four row tapered roller bearings |
| S4T-F-802050 | 177.8 | 247.65 | 192.088 | 192.088 | 26.6 | Z-802050 Sealed type, Four row tapered roller bearings |
| S4T-F-575937 | 190.5 | 266.7 | 188.912 | 187.325 | 34 | Z-575937 Sealed type, Four row tapered roller bearings |
| S4T-F-802191.H122AE | 203.2 | 317.5 | 266.7 | 266.7 | 75.8 | Z-802191.H122AE Sealed type, Four row tapered roller bearings |
| S4T-F-802017 | 206.375 | 282.575 | 190.5 | 190.5 | 33 | Z-802017 Sealed type, Four row tapered roller bearings |
| S4T-F-573416 | 215.9 | 288.925 | 177.8 | 177.8 | 33.5 | Z-573416 Sealed type, Four row tapered roller bearings |
| S4T-F-802160 | 216.103 | 330.2 | 269.875 | 263.525 | 78 | Z-802160 Sealed type, Four row tapered roller bearings |
| S4T-F-802019.H122AG | 220.662 | 314.325 | 239.712 | 239.712 | 57 | Z-802019.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802130 | 228.6 | 311.15 | 200.025 | 200.025 | 41.5 | Z-802130 Sealed type, Four row tapered roller bearings |
| S4T-F-576479 | 228.6 | 400.05 | 296.875 | 296.875 | 164 | Z-576479 Sealed type, Four row tapered roller bearings |
| S4T-F-573745 | 234.95 | 327.025 | 196.85 | 196.85 | 52 | Z-573745 Sealed type, Four row tapered roller bearings |
| S4T-F-802190 | 241.478 | 349.148 | 228.6 | 228.6 | 75 | Z-802190 Sealed type, Four row tapered roller bearings |
| S4T-F-802082 | 244.475 | 327.025 | 193.675 | 193.675 | 42.5 | Z-802082 Sealed type, Four row tapered roller bearings |
| S4T-F-802192.H122AE | 244.475 | 381 | 304.8 | 304.8 | 133 | Z-802192.H122AE Sealed type, Four row tapered roller bearings |
| S4T-F-802066 | 254 | 358.775 | 269.875 | 269.875 | 83 | Z-802066 Sealed type, Four row tapered roller bearings |
| S4T-F-578395 | 260.35 | 422.275 | 317.5 | 314.325 | 180 | Z-578395 Sealed type, Four row tapered roller bearings |
| S4T-F-802011.H122AE | 266.7 | 355.6 | 228.6 | 230.188 | 61 | Z-802011.H122AE Sealed type, Four row tapered roller bearings |
| S4T-F-802011 | 266.7 | 355.6 | 228.6 | 230.188 | 61 | Z-802011 Sealed type, Four row tapered roller bearings |
| S4T-F-573688 | 266.7 | 393.7 | 269.878 | 269.878 | 115 | Z-573688 Sealed type, Four row tapered roller bearings |
| S4T-F-580961 | 273.05 | 381 | 244.475 | 244.475 | 84 | Z-580961 Sealed type, Four row tapered roller bearings |
| S4T-F-802193.H122AE | 276.225 | 393.7 | 269.878 | 269.878 | 109 | Z-802193.H122AE Sealed type, Four row tapered roller bearings |
| S4T-F-575940 | 279.4 | 393.7 | 269.878 | 269.878 | 106 | Z-575940 Sealed type, Four row tapered roller bearings |
| S4T-F-802101.A250.300 | 285.75 | 380.898 | 244.475 | 244.475 | 74 | Z-802101.A250.300 Sealed type, Four row tapered roller bearings |
| S4T-F-802124 | 287.5 | 440 | 330 | 330 | 190 | Z-802124 Sealed type, Four row tapered roller bearings |
| S4T-F-802096 | 288.925 | 406.4 | 298.45 | 298.45 | 117 | Z-802096 Sealed type, Four row tapered roller bearings |
| S4T-F-802071.H122AG | 304.648 | 438.048 | 279.4 | 280.99 | 128 | Z-802071.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802079 | 304.8 | 419.1 | 269.875 | 269.875 | 104 | Z-802079 Sealed type, Four row tapered roller bearings |
| S4T-F-577249 | 304.902 | 412.648 | 266.7 | 266.7 | 106 | Z-577249 Sealed type, Four row tapered roller bearings |
| S4T-F-802025 | 304.902 | 412.648 | 266.7 | 266.7 | 98 | Z-802025 Sealed type, Four row tapered roller bearings |
| S4T-F-802025.H122AF | 304.902 | 412.648 | 266.7 | 266.7 | 98 | Z-802025.H122AF Sealed type, Four row tapered roller bearings |
| S4T-F-567640 | 304.902 | 412.648 | 266.7 | 336.55 | 113 | Z-567640 Sealed type, Four row tapered roller bearings |
| S4T-F-802072.H122AG | 305.003 | 438.048 | 279.4 | 280.99 | 128 | Z-802072.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802081.H122AE | 317.5 | 422.275 | 269.875 | 269.875 | 100 | Z-802081.H122AE Sealed type, Four row tapered roller bearings |
| S4T-F-581035 | 317.5 | 447.675 | 327.025 | 327.025 | 168 | Z-581035 Sealed type, Four row tapered roller bearings |
| S4T-F-802068 | 330.302 | 438.023 | 254 | 247.65 | 97 | Z-802068 Sealed type, Four row tapered roller bearings |
| S4T-F-576210 | 333.375 | 469.9 | 342.9 | 342.9 | 193 | Z-576210 Sealed type, Four row tapered roller bearings |
| S4T-F-802108.H122AG | 341.312 | 457.098 | 254 | 254 | 110 | Z-802108.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802003.H122AG | 343.052 | 457.098 | 254 | 254 | 108 | Z-802003.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802003.H122AF | 343.052 | 457.098 | 254 | 254 | 108 | Z-802003.H122AF Sealed type, Four row tapered roller bearings |
| S4T-F-578862 | 343.052 | 457.098 | 254 | 254 | 119 | Z-578862 Sealed type, Four row tapered roller bearings |
| S4T-F-802003.H122BJ | 343.052 | 457.098 | 254 | 254 | 108 | Z-802003.H122BJ Sealed type, Four row tapered roller bearings |
| S4T-F-802029 | 346.075 | 488.95 | 358.775 | 358.775 | 208 | Z-802029 Sealed type, Four row tapered roller bearings |
| S4T-F-802023 | 355.6 | 482.6 | 269.875 | 265.112 | 137 | Z-802023 Sealed type, Four row tapered roller bearings |
| S4T-F-575032 | 355.6 | 482.6 | 269.875 | 330.2 | 152 | Z-575032 Sealed type, Four row tapered roller bearings |
| S4T-F-802111 | 355.6 | 488.95 | 317.5 | 317.5 | 177 | Z-802111 Sealed type, Four row tapered roller bearings |
| S4T-F-579769 | 368.3 | 523.875 | 382.588 | 382.588 | 255 | Z-579769 Sealed type, Four row tapered roller bearings |
| S4T-F-802015 | 385.762 | 514.35 | 317.5 | 317.5 | 175 | Z-802015 Sealed type, Four row tapered roller bearings |
| S4T-F-802039 | 406.4 | 546.1 | 288.925 | 288.925 | 180 | Z-802039 Sealed type, Four row tapered roller bearings |
| S4T-F-573326 | 406.4 | 546.1 | 288.925 | 268.288 | 192 | Z-573326 Sealed type, Four row tapered roller bearings |
| S4T-F-802078 | 409.575 | 546.1 | 334.962 | 334.962 | 209 | Z-802078 Sealed type, Four row tapered roller bearings |
| S4T-F-802046M | 415.925 | 590.55 | 434.975 | 434.975 | 387 | Z-802046M Sealed type, Four row tapered roller bearings |
| S4T-F-576306 | 415.925 | 590.55 | 434.975 | 434.975 | 382 | Z-576306 Sealed type, Four row tapered roller bearings |
| S4T-F-564363 | 431.8 | 571.5 | 279.4 | 279.4 | 180 | Z-564363 Sealed type, Four row tapered roller bearings |
| S4T-F-802013M | 431.8 | 571.5 | 336.55 | 336.55 | 230 | Z-802013M Sealed type, Four row tapered roller bearings |
| S4T-F-802013 | 431.8 | 571.5 | 336.55 | 336.55 | 225 | Z-802013 Sealed type, Four row tapered roller bearings |
| S4T-F-802044 | 440 | 590 | 480 | 480 | 359 | Z-802044 Sealed type, Four row tapered roller bearings |
| S4T-F-800917 | 440 | 650 | 353.05 | 353.05 | 378 | Z-800917 Sealed type, Four row tapered roller bearings |
| S4T-F-574347 | 444.5 | 571.5 | 355.6 | 355.6 | 229 | Z-574347 Sealed type, Four row tapered roller bearings |
| S4T-F-575857 | 447.675 | 635 | 463.55 | 463.55 | 470 | Z-575857 Sealed type, Four row tapered roller bearings |
| S4T-F-802180 | 450 | 595 | 368 | 368 | 275 | Z-802180 Sealed type, Four row tapered roller bearings |
| S4T-F-576497 | 450 | 595 | 398 | 398 | 302 | Z-576497 Sealed type, Four row tapered roller bearings |
| S4T-F-580269 | 450 | 595 | 414 | 414 | 308 | Z-580269 Sealed type, Four row tapered roller bearings |
| S4T-F-802188 | 457.2 | 596.9 | 279.4 | 276.225 | 194 | Z-802188 Sealed type, Four row tapered roller bearings |
| S4T-F-802042M.H122AF | 457.2 | 596.9 | 279.4 | 276.225 | 201 | Z-802042M.H122AF Sealed type, Four row tapered roller bearings |
| S4T-F-802167 | 460 | 610 | 360 | 360 | 286 | Z-802167 Sealed type, Four row tapered roller bearings |
| S4T-F-572067 | 479.425 | 679.45 | 495.3 | 495.3 | 574 | Z-572067 Sealed type, Four row tapered roller bearings |
| S4T-F-802007.H122BH | 482.6 | 615.95 | 330.2 | 330.2 | 230 | Z-802007.H122BH Sealed type, Four row tapered roller bearings |
| S4T-F-802007.H122AG | 482.6 | 615.95 | 330.2 | 330.2 | 230 | Z-802007.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-802149 | 482.6 | 615.95 | 377.825 | 406.4 | 273 | Z-802149 Sealed type, Four row tapered roller bearings |
| S4T-F-802149.H122AF | 482.6 | 615.95 | 377.825 | 406.4 | 273 | Z-802149.H122AF Sealed type, Four row tapered roller bearings |
| S4T-F-579990 | 482.6 | 615.95 | 330.2 | 330.2 | 246 | Z-579990 Sealed type, Four row tapered roller bearings |
| S4T-F-802112 | 482.6 | 615.95 | 400 | 400 | 283 | Z-802112 Sealed type, Four row tapered roller bearings |
| S4T-F-802143.H122AG | 482.6 | 615.95 | 330.2 | 406.4 | 245 | Z-802143.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-564537 | 482.6 | 615.95 | 330.2 | 419.1 | 247 | Z-564537 Sealed type, Four row tapered roller bearings |
| S4T-F-579576 | 482.6 | 615.95 | 402.05 | 419.1 | 288 | Z-579576 Sealed type, Four row tapered roller bearings |
| S4T-F-802267 | 489.026 | 634.873 | 320.675 | 320.675 | 250 | Z-802267 Sealed type, Four row tapered roller bearings |
| S4T-F-577346 | 501.65 | 711.2 | 520.7 | 520.7 | 632 | Z-577346 Sealed type, Four row tapered roller bearings |
| S4T-F-567899 | 509.948 | 654.924 | 379 | 377 | 320 | Z-567899 Sealed type, Four row tapered roller bearings |
| S4T-F-575859 | 514.35 | 673.1 | 422.275 | 422.275 | 398 | Z-575859 Sealed type, Four row tapered roller bearings |
| S4T-F-574472 | 519.113 | 736.6 | 536.575 | 536.575 | 732 | Z-574472 Sealed type, Four row tapered roller bearings |
| S4T-F-802152 | 540 | 690 | 400 | 400 | 370 | Z-802152 Sealed type, Four row tapered roller bearings |
| S4T-F-575848 | 558.8 | 736.6 | 322.263 | 322.263 | 371 | Z-575848 Sealed type, Four row tapered roller bearings |
| S4T-F-565249 | 558.8 | 736.6 | 409.575 | 409.575 | 460 | Z-565249 Sealed type, Four row tapered roller bearings |
| S4T-F-802080 | 558.8 | 736.6 | 457.2 | 455.612 | 512 | Z-802080 Sealed type, Four row tapered roller bearings |
| S4T-F-574859 | 584.2 | 762 | 401.638 | 396.875 | 480 | Z-574859 Sealed type, Four row tapered roller bearings |
| S4T-F-802186 | 585.788 | 771.525 | 479.425 | 479.425 | 580 | Z-802186 Sealed type, Four row tapered roller bearings |
| S4T-F-802186M | 585.788 | 771.525 | 479.425 | 479.425 | 602 | Z-802186M Sealed type, Four row tapered roller bearings |
| S4T-F-802171A | 595.312 | 844.55 | 615.95 | 615.95 | 1126 | Z-802171A Sealed type, Four row tapered roller bearings |
| S4T-F-578717 | 600 | 850 | 450 | 450 | 820 | Z-578717 Sealed type, Four row tapered roller bearings |
| S4T-F-802043.H122AG | 609.6 | 787.4 | 361.95 | 361.95 | 425 | Z-802043.H122AG Sealed type, Four row tapered roller bearings |
| S4T-F-573689 | 609.6 | 813.562 | 479.425 | 479.425 | 695 | Z-573689 Sealed type, Four row tapered roller bearings |
| S4T-F-580638 | 635 | 901.7 | 654.05 | 654.05 | 1355 | Z-580638 Sealed type, Four row tapered roller bearings |
| S4T-F-572660 | 657.225 | 933.45 | 676.275 | 676.275 | 1530 | Z-572660 Sealed type, Four row tapered roller bearings |
| S4T-F-575037 | 679.45 | 901.7 | 552.45 | 552.45 | 970 | Z-575037 Sealed type, Four row tapered roller bearings |
| S4T-F-802087M | 685.8 | 876.3 | 355.6 | 352.425 | 516 | Z-802087M Sealed type, Four row tapered roller bearings |
| S4T-F-574473 | 708.025 | 930.275 | 565.15 | 565.15 | 1060 | Z-574473 Sealed type, Four row tapered roller bearings |
| S4T-F-802095 | 710 | 900 | 410 | 410 | 570 | Z-802095 Sealed type, Four row tapered roller bearings |
| S4T-F-802095M | 710 | 900 | 410 | 410 | 600 | Z-802095M Sealed type, Four row tapered roller bearings |
| S4T-F-802031 | 711.2 | 914.4 | 317.5 | 317.5 | 507 | Z-802031 Sealed type, Four row tapered roller bearings |
| S4T-F-802031M | 711.2 | 914.4 | 317.5 | 317.5 | 523 | Z-802031M Sealed type, Four row tapered roller bearings |
| S4T-F-567922 | 711.2 | 914.4 | 317.5 | 425.45 | 575 | Z-567922 Sealed type, Four row tapered roller bearings |
| S4T-F-565250 | 749.3 | 1066.8 | 736.6 | 723.9 | 2185 | Z-565250 Sealed type, Four row tapered roller bearings |
| S4T-F-802069M.H122BU | 863.6 | 1169.99 | 844.55 | 844.55 | 2640 | Z-802069M.H122BU Sealed type, Four row tapered roller bearings |
| S4T-F-576211 | 863.6 | 1219.2 | 889 | 876.3 | 3364 | Z-576211 Sealed type, Four row tapered roller bearings |
